Whose got the TB V4 mount clamp CAD?

1 Like
#42

@Skatardude10 might…

2 Likes
#43

Or at least the dimensions, making a custom mount face but reusing the clamp (making for a friend so I don’t have the clamp in hand)

1 Like
#44

Also a bergmeister, just need the inner hub

#45

Yeah I think I do. Once I hop back on my PC I’ll check.

3 Likes
#46

https://a360.co/2L64CVs

I don’t have the new v4 clamp, just the old v4 mount.

2 Likes
#47

Sweet, thanks! This is the one I needed

1 Like
#48

Does anyone have the files for heXLs? Or is willing to get me some dimensions?

I need the angle of the angles of the 2 hangar faces, the height from the top of the baseplate to the center of the axles, and the minimum distance from the line of rotation to the center of the axle (line is from the center of the pivot cup to the center of the bushing face)

Edit: if anyone needs dimensions, I can get them for you now that I got a set

1 Like
#49

Does anyone have CAD for a Penny Board?

#50

Im really looking for some cad files for matrix II trucks if anyone has any truck files that would be helpful thanks

1 Like
#51

Is that a V4? If yes, it’s in the folder shared, under motor mount

3 Likes
#53

Would anyone happen to have (or be willing to model) the tail of the big Ben enclosure for the hummie deck?

#54

Anyone has a 3d model of a Hummie deck? I’m trying to design an enclosure for it and it would help me a lot. @Pedrodemio, do you have it by any chance?

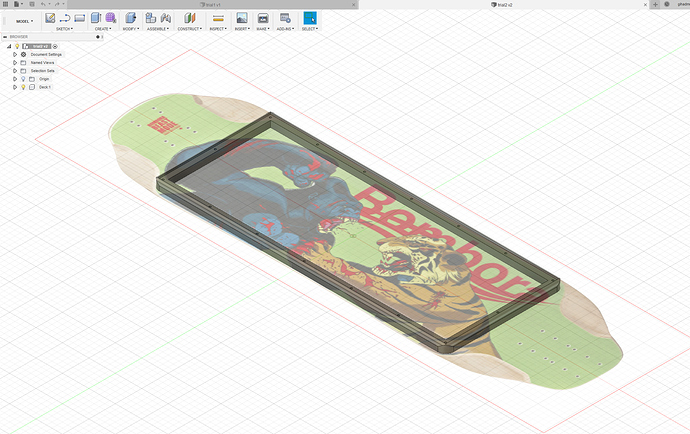

It will be something like this, printed in TPU and the cover will be a 3mm piece of lexan:

image.jpg2027×1276 926 KB

2 Likes
#55

I have just the basic curvature, didn’t bother modeling it completely since the section that mattered was simple enough to get the dimensions by hand

Let me know if you can’t open Solidworks files

3 Likes
#56

Could i get that measurement from the axel center to the top of the baceplate please. Wanna work out the ride height of my board running hexl tkp

2 Likes
#57

Sure, I’ll grab it when I get home, PM me in 10 or 11 hours?

#58

STL files for some kind of gear drive?

#59

Hi guys! I know I am rpobably shooting for the impossible but does someone have the CAD file for the SurfRodz TKP 177mm? The hangar is easy to model but will save me some time if I have it already done. Thanks a lot!

2 Likes
#60

Does anyone have 3D model of a full trampa vertigo truck?

1 Like
#61

Hey guys
Where can I find a model for Caliber truck?

Thanks
