A little upgrade.

Trying to retro fit the herringbone gear drives made by @avX. This one is based off the MK1. The mount is meant for Kahua trucks, and the diameter is 25mm. The Trampa truck is a bit larger than that, so I’ll have to cut the truck down a bit. Science time.

20200310_192609
20200310_1926094032×1908 1.62 MB

The truck is so long it’s barely able to fit on my 7x12 metal lathe.

20200313_131310
20200313_1313104032×1908 2.02 MB
20200313_131314
20200313_1313144032×1908 2.3 MB
20200313_200358
20200313_2003584032×1908 2.33 MB

And the gear…

20200316_130700
20200316_1307004032×1908 1.63 MB
20200316_134109
20200316_1341094032×1908 1.99 MB

And comes the adapter to fit the Superstars. Jeff helped model the adapter to fit and fits nicely. Printed in PLA+ at 100% infill.

20200319_010737
20200319_0107374032×1908 3.33 MB
20200317_212152
20200317_2121524032×1908 2.87 MB

Soft fitting everything on to check for any clearance issues, all good.

20200316_135622
20200316_1356224032×1908 1.98 MB
20200316_134358
20200316_1343584032×1908 1.68 MB
20200316_134109
20200316_1341094032×1908 1.99 MB

And it’s time to set it up
Mounts go on and torque in place

20200317_235726
20200317_2357264032×1908 2.08 MB

Gears.
20200318_002453
20200318_0024534032×1908 2.2 MB

Figuring out mount angle
20200317_231944
20200317_2319444032×1908 1.95 MB
20200317_231948
20200317_2319484032×1908 2.07 MB
20200317_232213
20200317_2322134032×1908 2.16 MB

And on goes the mayonnaise

20200318_143758
20200318_1437584032×1908 1.86 MB

And here it is

20200318_013904
20200318_0139044032×1908 2.14 MB
20200318_013919
20200318_0139194032×1908 2.01 MB
20200318_013922
20200318_0139224032×1908 2.26 MB
20200318_141303
20200318_1413034032×1908 1.76 MB

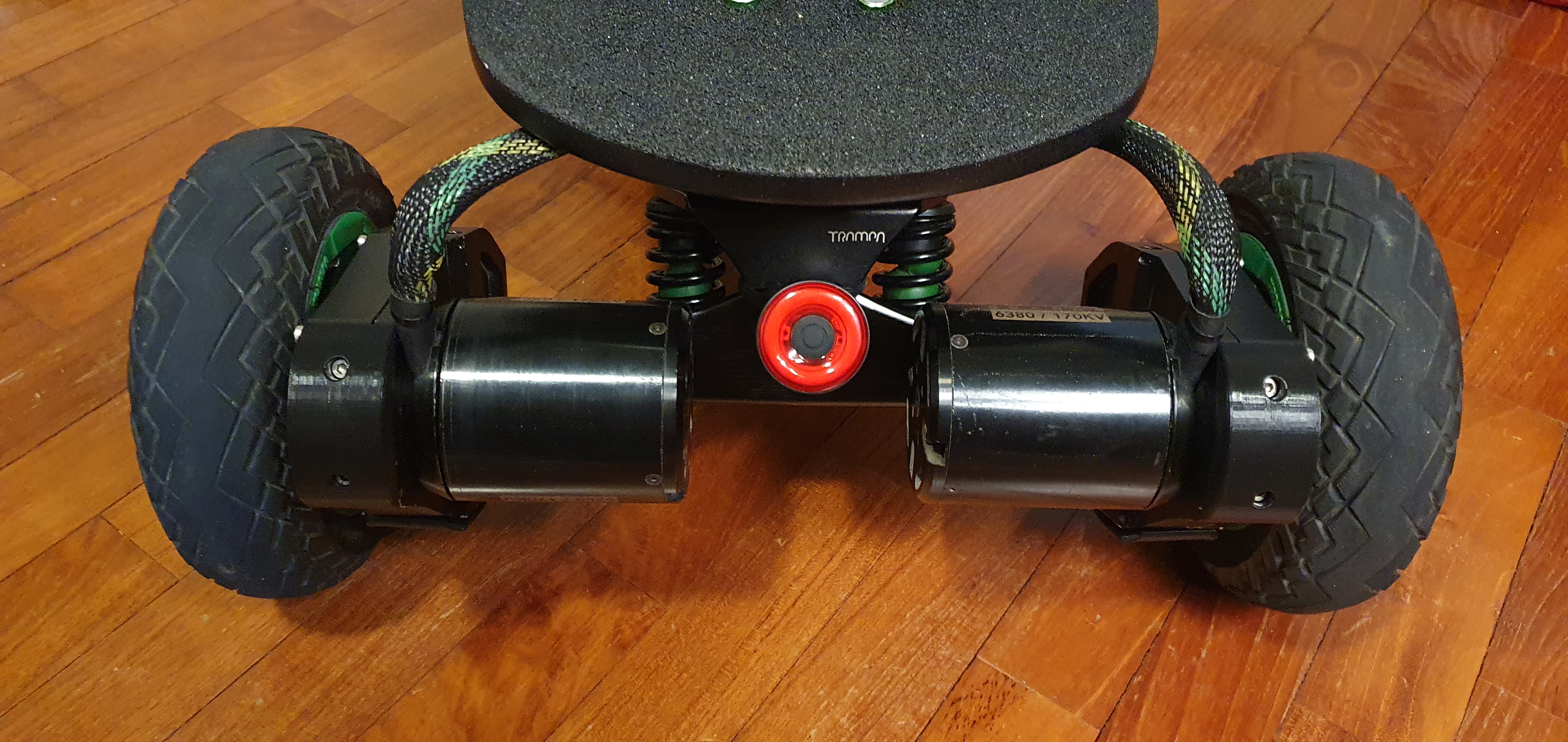

Free roll is better, and motor clearance is better. Love it. I took some shots when I was testing it at the carpark nearby.

20200318_150930
20200318_1509304032×1908 2 MB
20200318_150938
20200318_1509384032×1908 1.81 MB
20200318_150945
20200318_1509454032×1908 2.01 MB
