Alex's Esk8 Designs / Open Source Components

DIY Builds
, ,
1

Inspired by a lot of you out there

I figured I should compile my designs, Test Projects and Make them available to Build off of, as I cant do it all myself

This List will Start Small But I will definitely add to it over time aswell as Categorize it best I can.

ELECTRONIC PARTS

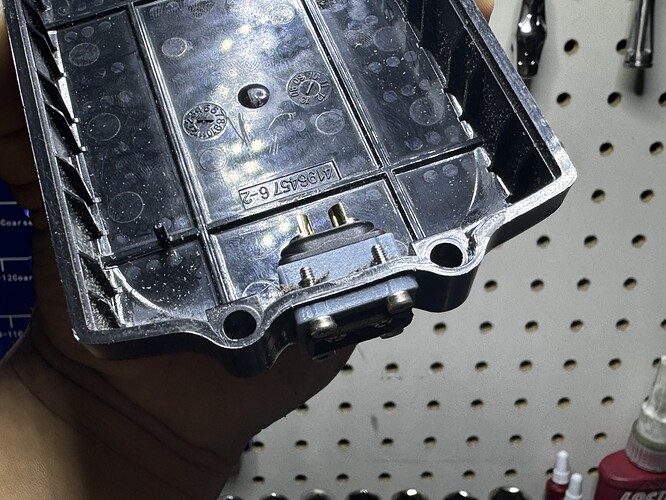

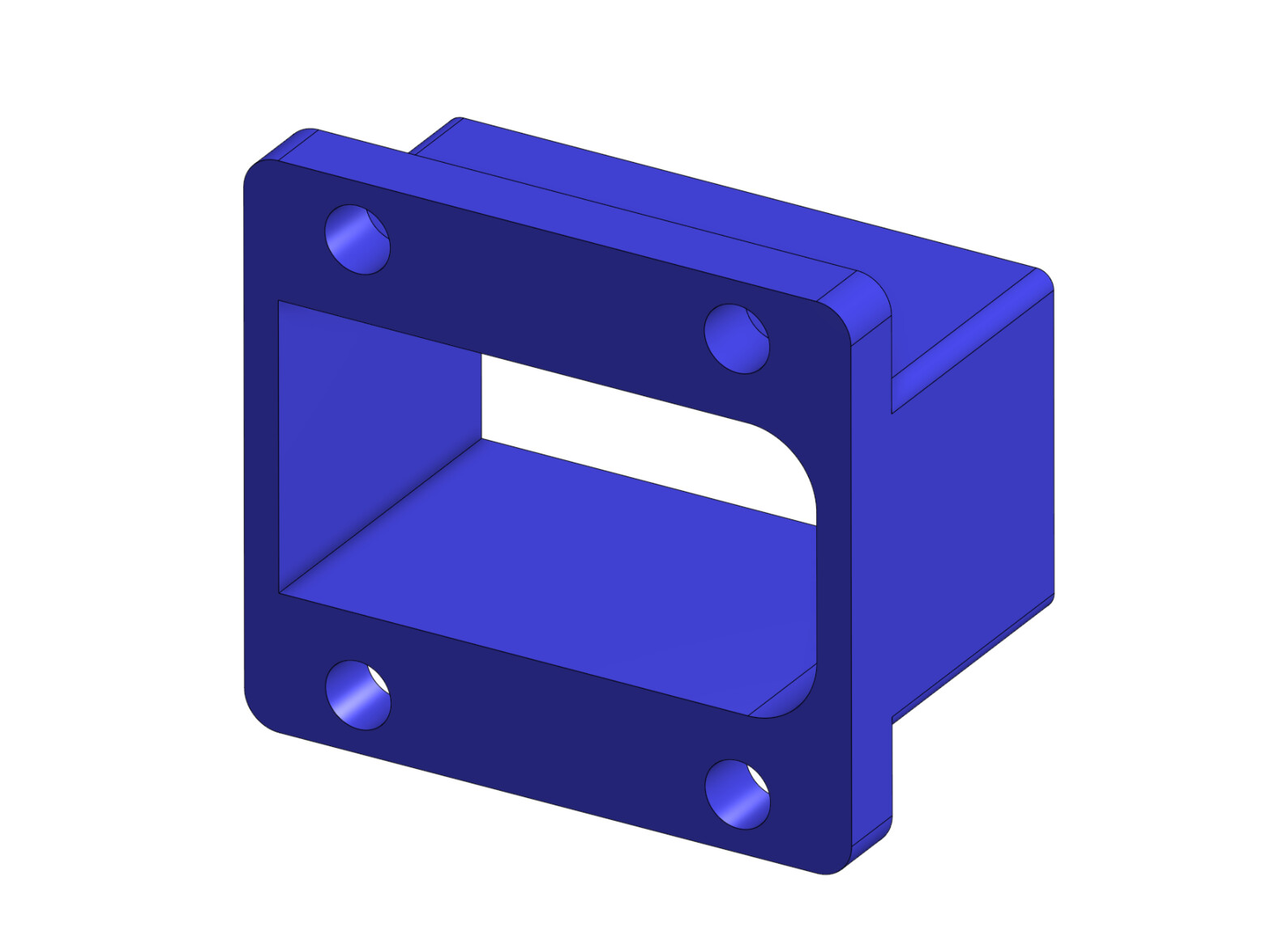

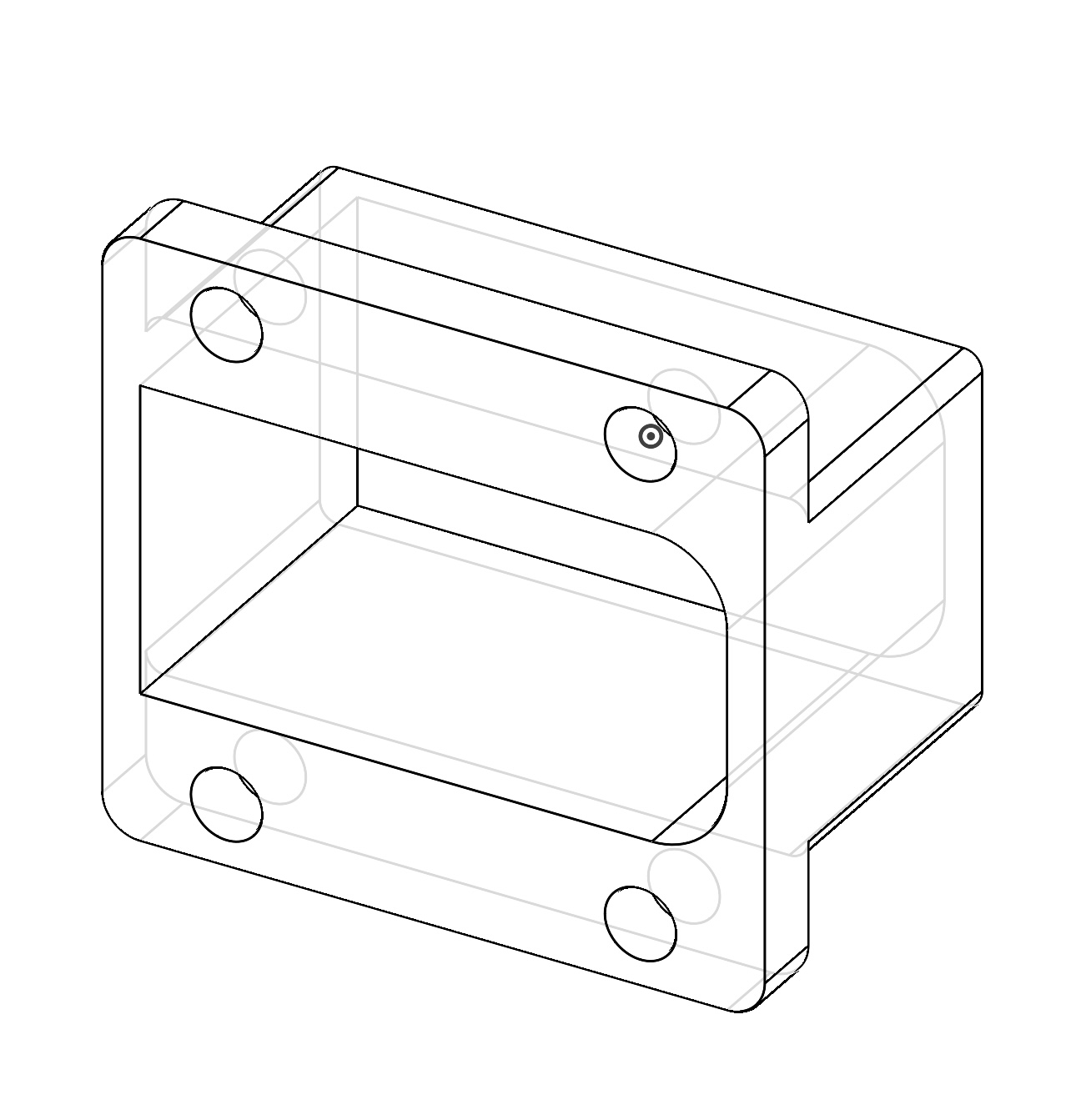

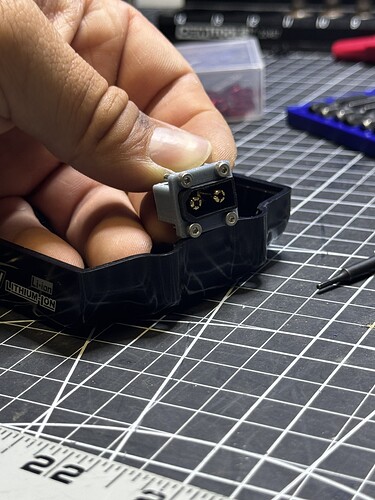

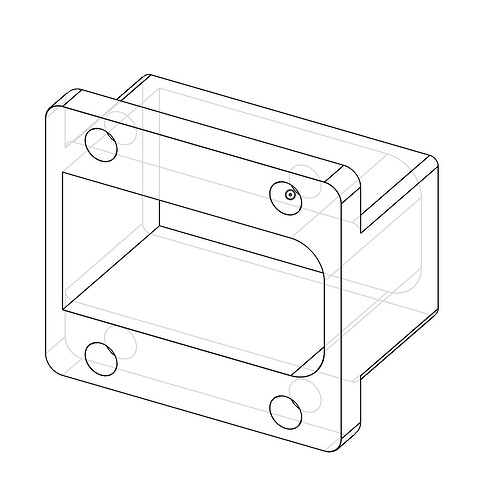

  1. Super Compact XT60 (Male) PANEL MOUNT
    this design is intended to use x4 m2 Screws
Image Preview

image1290×1343 137 KB

image1557×1175 85.2 KB

image3024×4032 1.81 MB

image4032×3024 2.01 MB

—>PanelmountLink

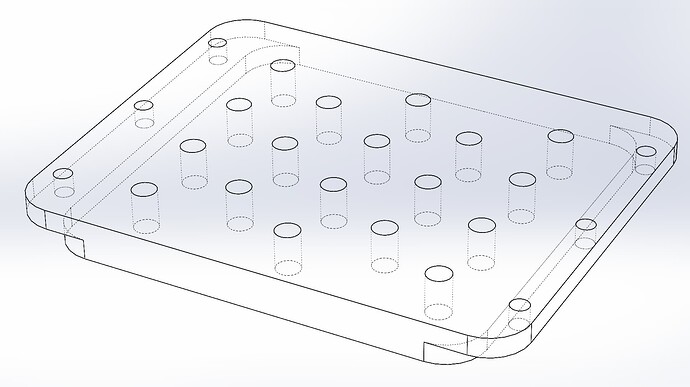

  1. Lipo Alarm Caddy
    Unfortunately Designed this in Solidworks which I dont have Access to so only the STL style File is Available on my Printables Page :frowning:
    —>Link
Image Preview

image1280×595 59.8 KB

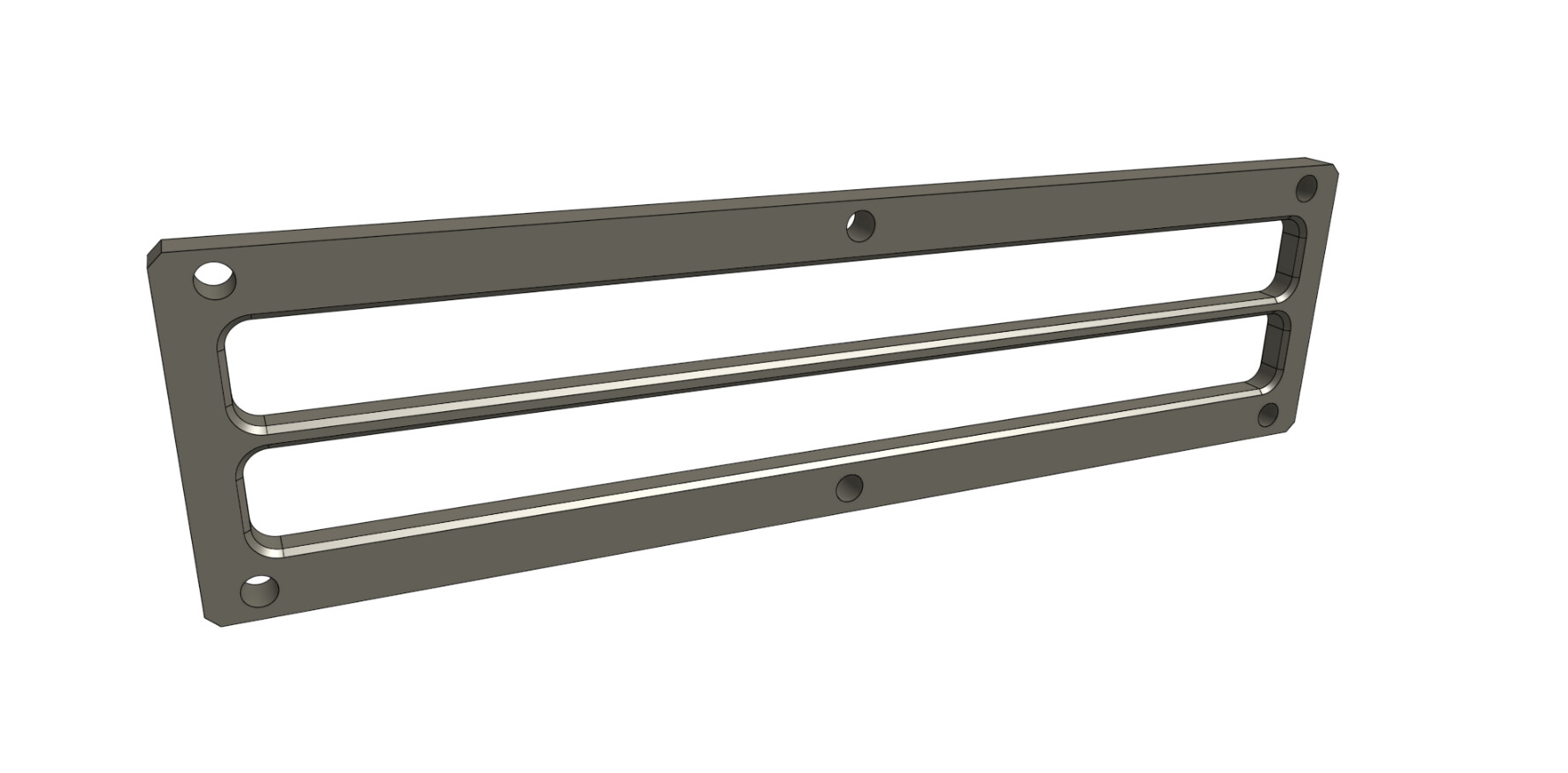

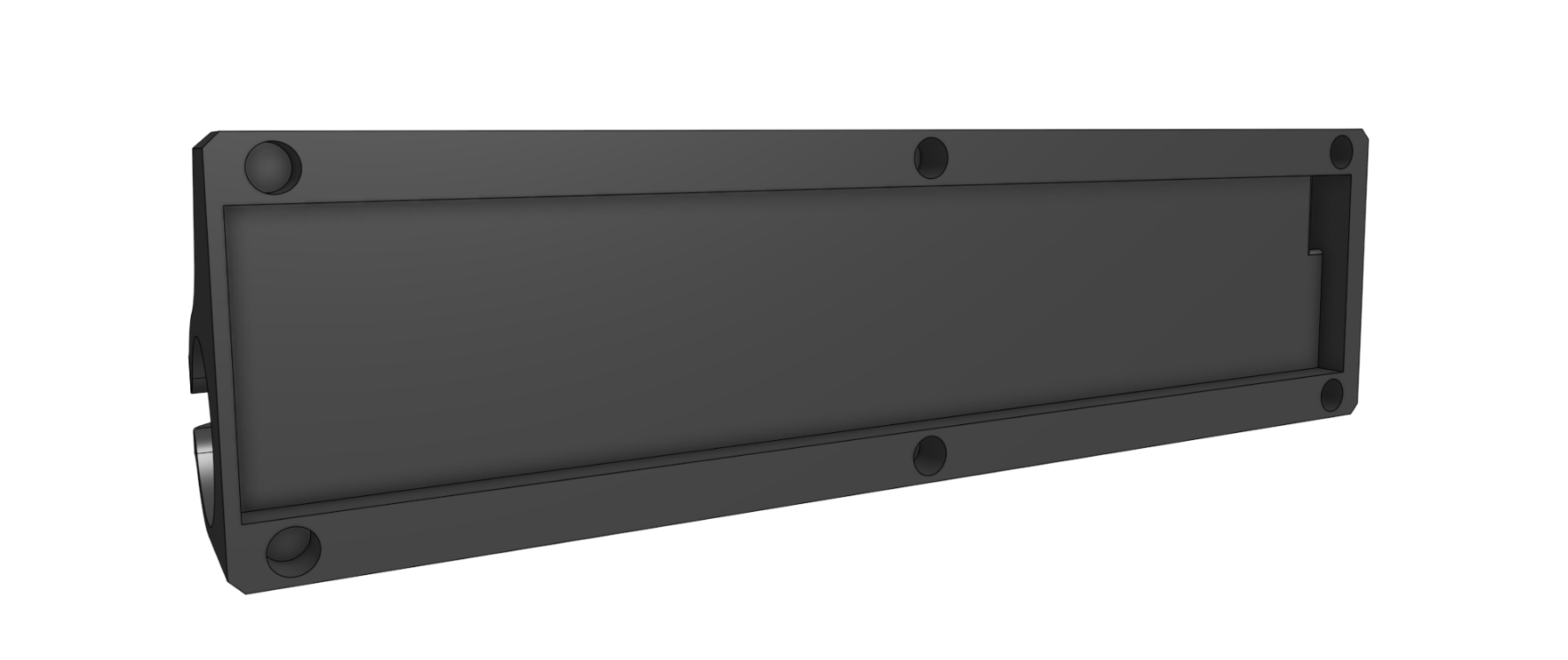

  1. SRB TAILIGHT SHROUD
    Designed to Secure to the aluminum motor support crossbar

—>Shroud link
—>Panel link

Image Preview

image1790×753 42.5 KB

image1781×878 82.5 KB

MECHANICAL PARTS

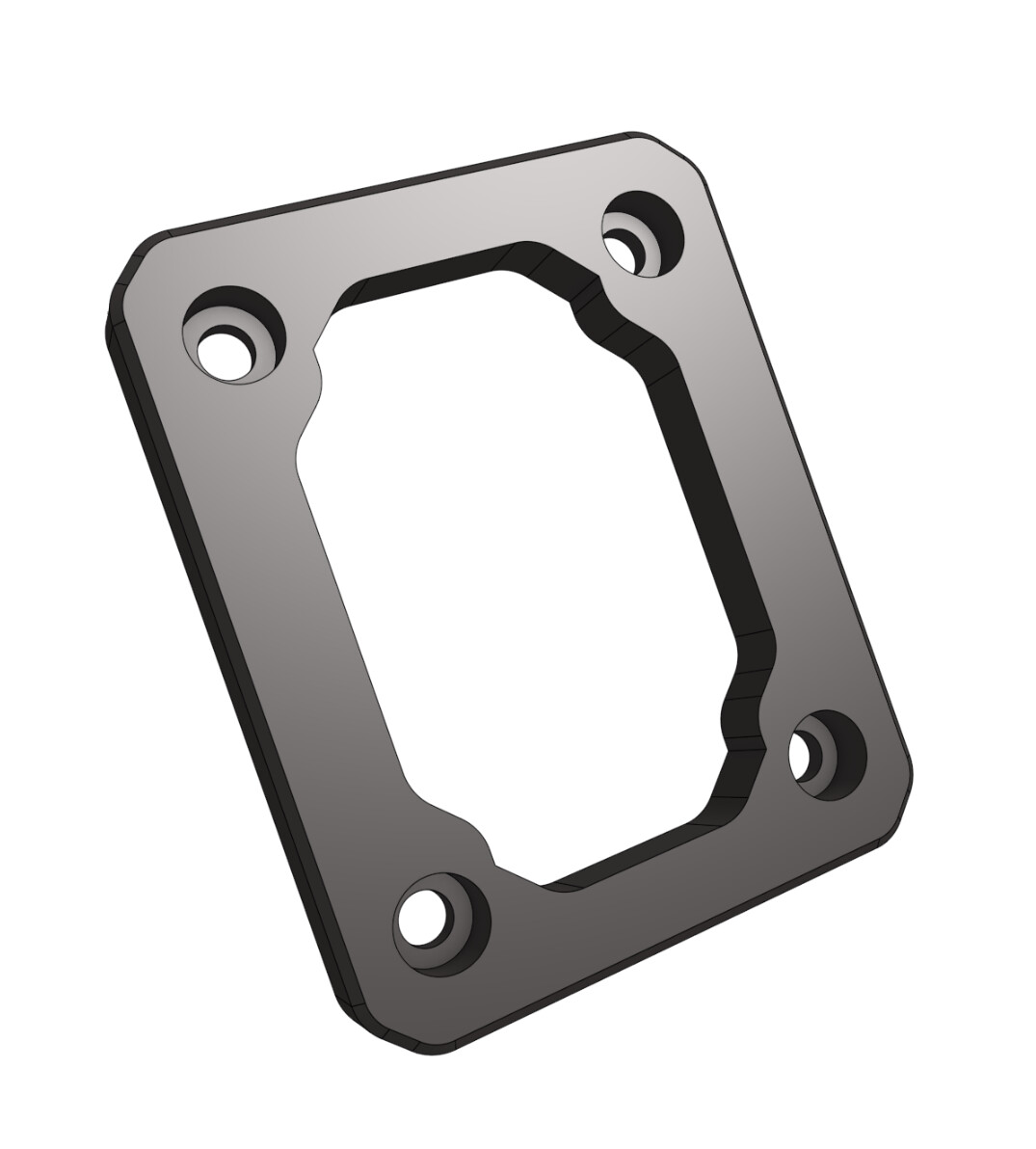

  1. Countersink Plate - Never Tested
    has a bit of a medieval look to it
Image Preview

image1075×1192 69.1 KB

—>Countersink Link

Stomp pad
specially Designed 4 the Vans Waffle Pattern goes great on the underside of your Raceboard as the Grub Screws Poke through your Deck or aluminum sheet or whatever

Image Preview

image1920×1079 77.3 KB

—> Rear Left Foot Grippperrrrm5 new.STL (210.4 KB)

2 Likes
2

Do you have a board with 6" wheels?

Might you wanna lean your board up against a wall without it sliding off the wall simultaneously scraping one of your poor family members shins off?

or just simply to keep the weight of the board from crushing you overengineering 3d printed taillight shroud?

well boy do I have the goods for you
introducing my latest shit engineered design →

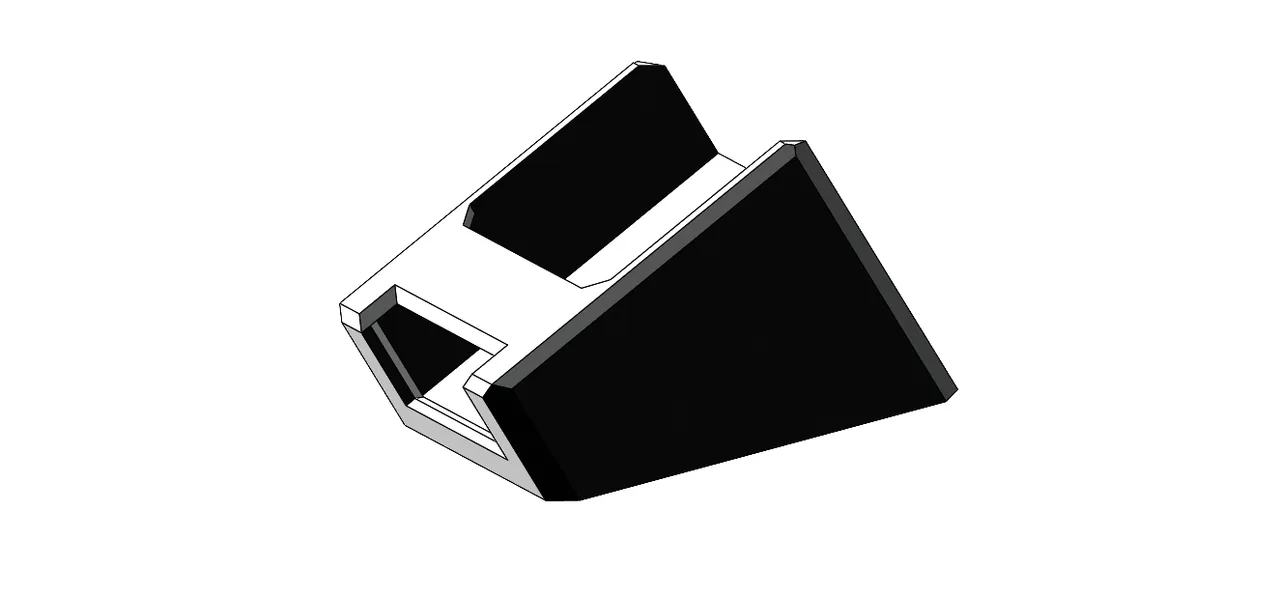

weighted wheel stop or whatever the fawk

Body.stl

(Body Extended.stl)

Bottom Plate.stl

Instructions

Print the body

Inject threaded inserts (I used M4x8.1 from CNC kitchen)

Fill it w sand / lead whatever malleable heavy matter to fill the negative void
Print the bottom – maybe line the mating faces w glue so sand doesn’t escape

lastly probably purchase these → Use x4 m3 screws no more than 10mm long w a washer to secure rubber feet

Ill print later this week and put pictures real pictures up when I can

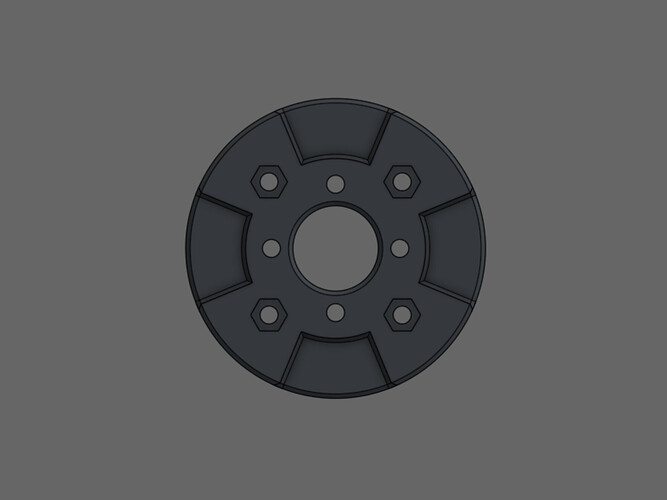

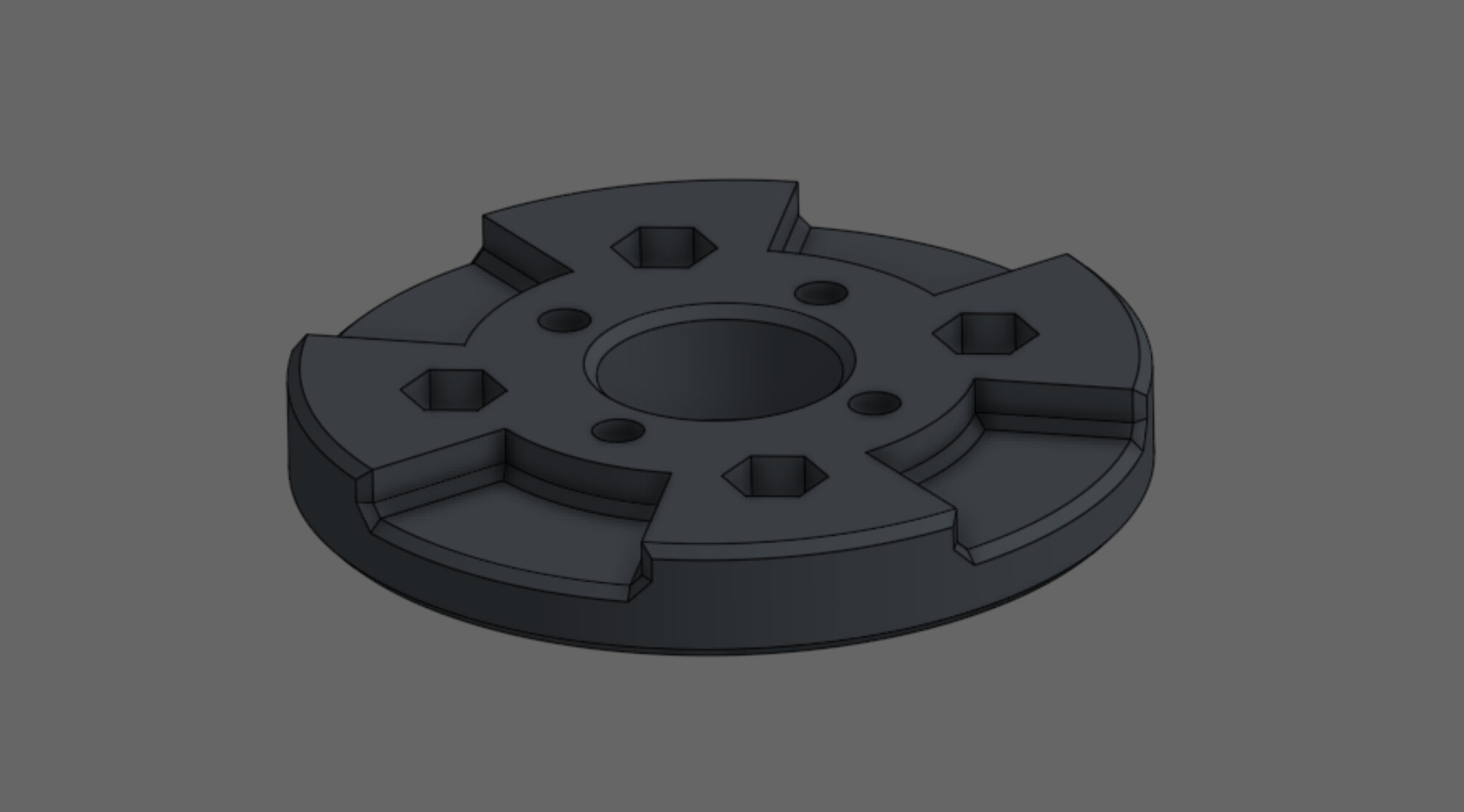

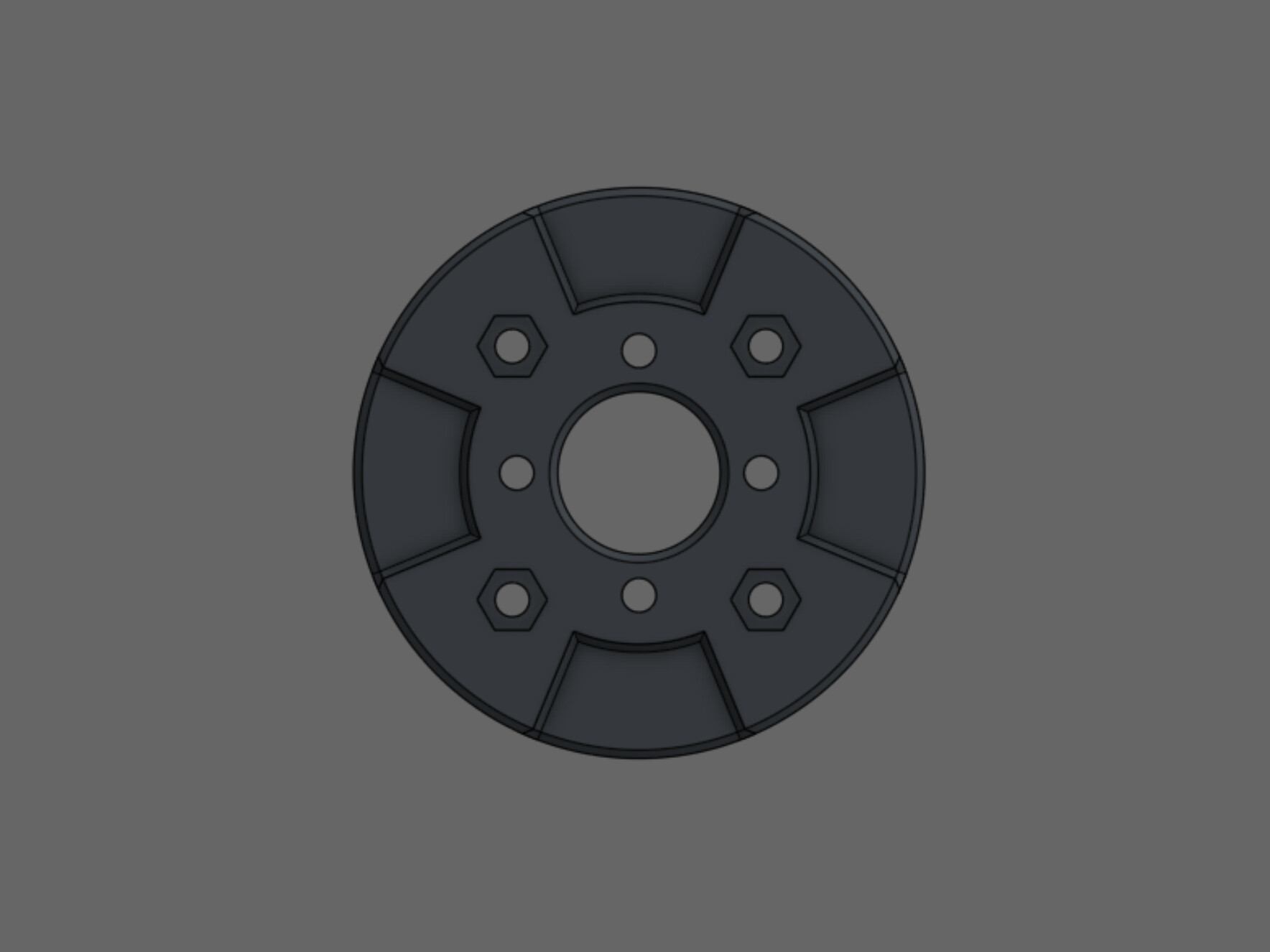

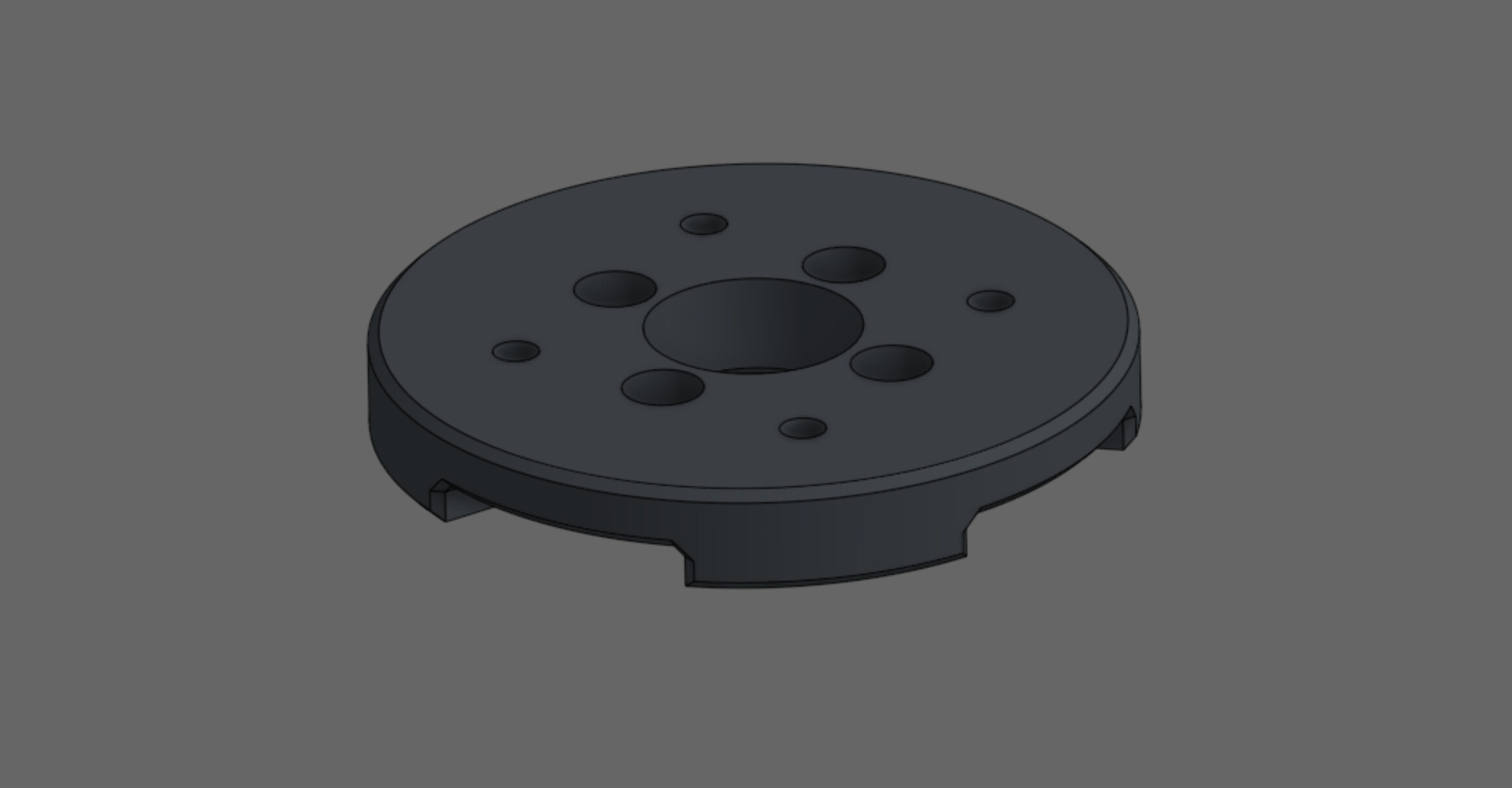

here are cad photos instead for now

image1888×1041 65.6 KB

image1610×1011 60 KB

image1280×1054 28.8 KB

alright thanks bye

3

Made this primarily I want to use vertical space / my v5 looks super dumb in this chair.
(It would crush my tailight / scratch my floor as it protrudes pretty far.)

IMG_9506
IMG_95061920×1440 158 KB

IMG_9508
IMG_95081920×2560 298 KB

4

added a Extended height version :slight_smile:

image1526×995 64.3 KB
