Have you done any analysis on this one? The fact there is no straight line between the core and rim through material worries me, I feel like it will be slightly more comfortable since that would be a natural sock absorber but that it would also have a shorter life span than other hubs
Kind of hard to do analysis on 3d printed parts
In a homogeneous material it would be fine tho
I did one at uni, but made no screenshots, sorry. If licensing allows it I’m setting Solidworks at my desktop at home up, but thats gonna take a while, because I only use Fusion here. Fusion has a simulation feature too I think, but you have to pay for it, so yeah… nope nope
That being said, simulations are just a rough estimate here, because 3D printed materials are not fully homogeneous, and also it varies from printer to printer. I can assure you though that these hubs are wayyy stronger than they need to be. Weakest part in the system is the rim flange, as always.
This is the part that makes my old ish engineering self want to just make it the good old fashioned way, use the SLA to make a mold to cast the wheel out of almag 35 and not put another crack in my ass if it fails.
Good news! Apparently the simulation feature in Fusion360 is available for free on the education edition, so here are some simulations at several force levels.

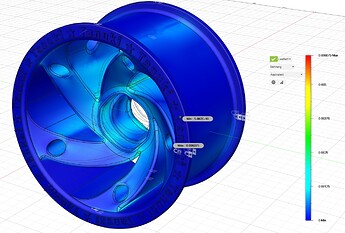

For those who have never seen something like this: Visuals are greatly exaggerated for comprehension, the actual values are represented in the graph, as well as the extrema pointed out.
Radial load setup on the bearing surfaces:
200N (~20kg per wheel):
safety factor:
tension:
displacement:
strain:
reaction force:
500N (~51kg per wheel):
safety factor:
tension:
displacement:
strain:
reaction force:
1000N (~102kg per wheel):
safety factor:
tension:
displacement:
strain:
reaction force:
You sure can do just that, just get a set of files and have at it. That being said, if you have the slightest bit of control over your printer these won’t fail you.
Cool, but you neglected to show your loading setup, that is the most important thing to know
Without knowing it, none of it is valid
Okay lol and the other important part - more important, rather, what are your constraints?
What assumptions are you making about how layer adhesion will factor into the strength of the hubs in this direction?
1000N strain FOS is probably the most useful measurement, all the others don’t tell us much, but that looks promising!
None, this is modeled as a homogeneous object. Thats why there are no forces applied to the rim flange, just to the bearing seat, as it closely behaves like a injection molded part if printed horizontally.
All surfaces which touch the tire are locked, as this is only a simulation on spoke forces.
Thanks
Technically you should have a distributed force only on the lower half where it touches the inner tube
id be interested to see some empirical testing done to see if layer adhesion actually has no effect on strength in this direction.
I’d be too! If you have the time, please go ahead, I sure don’t I noticed no actual difference in my real world testing a.k.a. driving them around. That is for sure not very scientific, but as the second strongest part on the whole model I have no doubt that it is suited for the application.
haha fair enough. Unfortunately im in the same boat tho
An entire bearing lol
Ahh yeah, I didn’t notice that
